Deckenpaneel-SW-Akustik-Nuss-Detail
STEPWOOD® acoustic as ceiling panels.
SW-Akustik-HEADER
With two different drilled holes available
SW-Akustik-HEADER-NL
STEPWOOD® acoustic panels used as an office partition

Stepwood® Acoustic

The Stepwood® design panel allows you to give a room high-quality and individual character. In combination with the different drilled holes, you are able achieve an ideal acoustic solution.

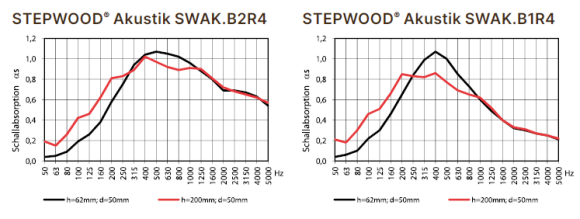

Stepwood® already improves noise levels through its stepped surface in comparison to smooth surfaces. Through visually stunning all-over holes, we have created the basis of good sound absorption. The absorption value is determined by the building height and the insulation material.

We combine design, nature and function, and provide Stepwood® acoustic panels in different wood types, finishes and drilled holes for you. You will surely find the right type for your project!

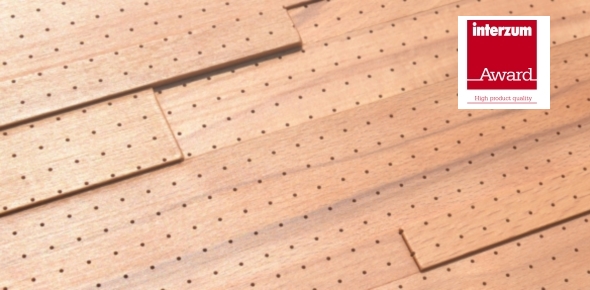

Awarded product

Awarded product

Stepwood® Acoustic has been awarded with the Interzum Award Intelligent material and design 2015 for high product quality

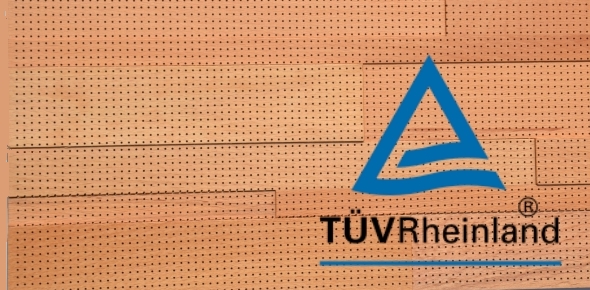

Certified effectiveness

With visually appealing, full-surface drilled holes - available in two sizes - we create the prerequisites for good sound absorption. The TÜV test report on the acoustic properties can be found under Downloads.

Certified effectiveness

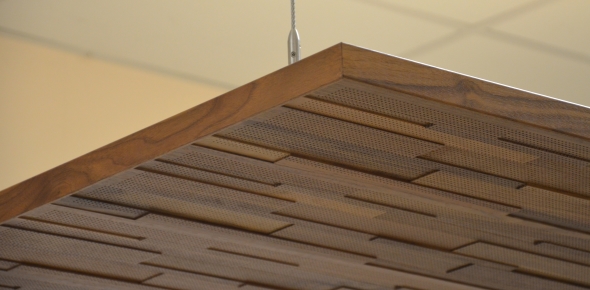

Versatile in use

Versatile in use

STEPWOOD® acoustic panels can be used for wall panelling, fronts and partitions.

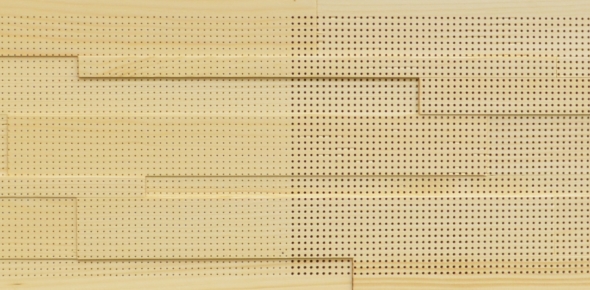

Two drilled hole sizes available

STEPWOOD® Akustik B1R4: drilled holes 1,2 mm, grid pattern 4,5 mm
STEPWOOD® Akustik B2R4: drilled holes 2 mm, grid pattern 4,5 mm

Two drilled hole sizes available




We manufacture Stepwood® Acoustics to order from 100 panels (27m²). Choose the type of wood you want: oak, walnut, beech or spruce, the surface is always varnished for production reasons. Choose as well the required size of the drilled holes.


The panels from STEPWOOD® acoustics have a size of L 1250 x W 219 mm and are grooved all around. Installation can be carried out using the Stepwood installation material. The absorption value is determined by the construction height and the insulation material.

Our distributors can offer solution-oriented advice. For prices, samples and technical information, please contact:


In Austria

Stepwood® Acoustic

Franz Rametsteiner GesmbH    Tel. +43 2828/7401
Ritterkamp 8, 3911 Rappottenstein    info@trikustik.at
